Rockfall Protection Mesh

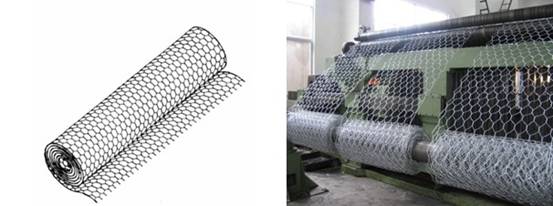

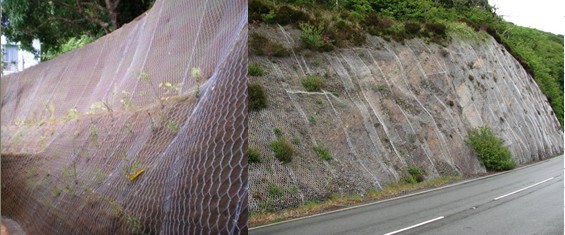

Our rockfall netting is made from Heavy duty galvanized or Galvanized +Pvc coated double twisted hexagonal woven mesh, used to prevent rocks and debris from failing onto roads, railways or where there is possibility of loss of property of life.

Feature:
Supplied in 25m and 50 m length rolls.
Heavy duty galvanized，Pvc coated for longevity and durability
Available in 2m and 4m width.

Applications
Drapery system
Erosion control blankets
Turf reinforcement mats

Finish
Heavy duty galvanized and pvc coated



Technical Specifications
1.Table of sizes for standard mesh rolls
L=Length(m) H=Height(m)
25-50 2-4

2. Standard Mesh - Wire
Type D(mm) Tolerance Wire Dia(mm)
8×10 80 =16%/-4% 2.7/3.7

3. Standard Wire Diameters
  Lacing Wire Mesh Wire Selvedge Wire
8×10 Ø mm 2.2/3.2 2.7/3.7 3.4/4.4

4. Wire tolerances and coating
Wire diameter  mm 2.0/3.0 2.7/3.7 3.4/4.4
Wire tolerance  (±)Ø mm 0.06 0.06 0.07
Min.Q.ty of Galmac   gr/m2 220 245 265
